The V-Series
For lightweight studio to heavyweight cine cameras
Introducing the V-Series
The Camgear V-Series tripod systems support cameras from DSLR to large Cine or OB set-ups. This wide range offers an array of choices regarding weight, material, payload, and technical specifications. Whether you are using it for news gathering or field production, studio work in any shape or size, filmmaking, or low-budget video productions, the V-Series always provides a frictionless, stable, and reliable performance. All Camgear fluid heads are equipped with a graded drag system and a counterbalance system, which ensures fast camera set-up and easy operation.
-

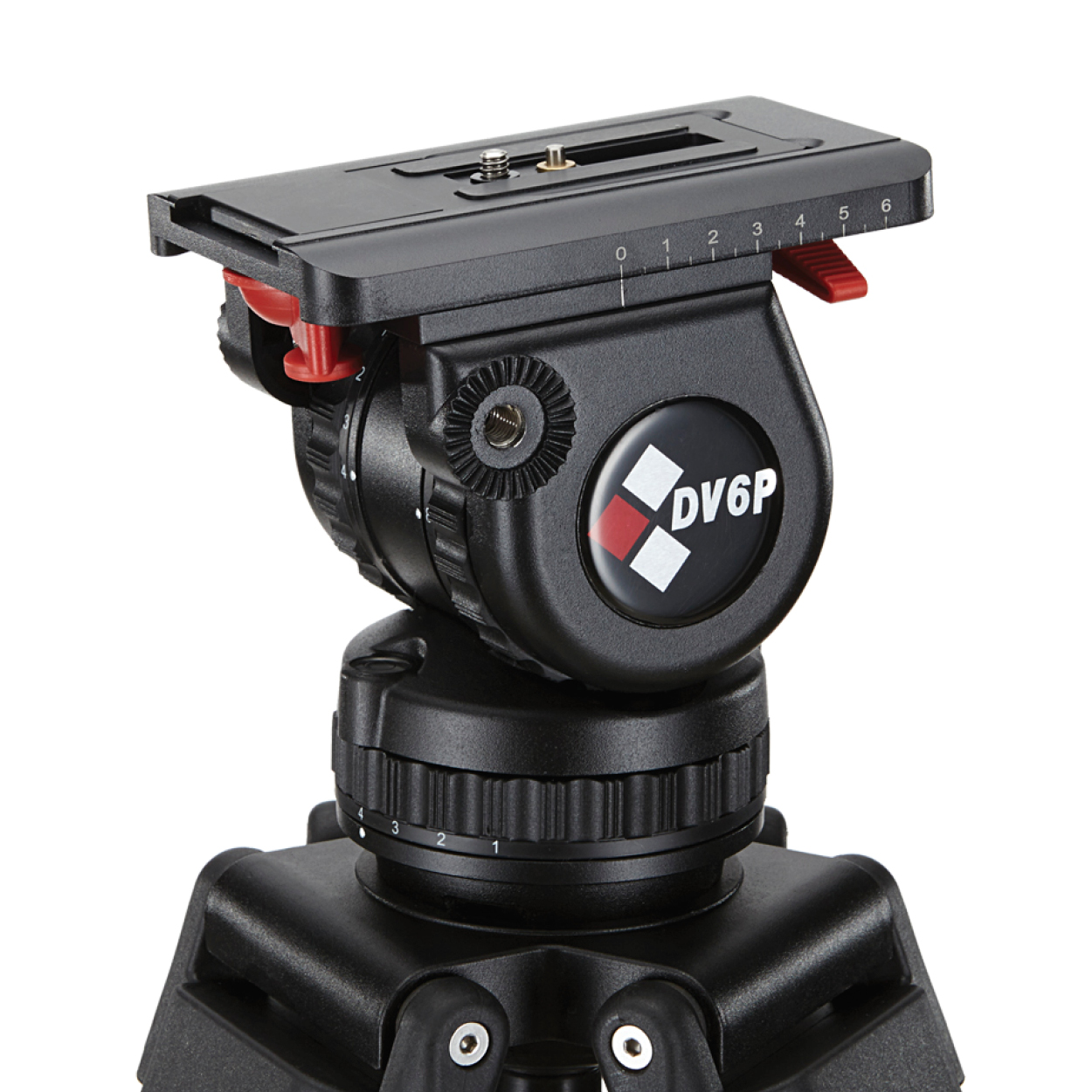

DV6P ALMS (CMG-DV6P-MS-AL-TRISYS)
MSRP: $1300
Key Features
Step counter balance. 8 Steps
0-22 lbs payload
75 mm bowl
Touch and Go Euro plate with quick release
Mid level spreader
Tripod bag included
The system includes a 2-stage aluminum tripod with a mid-level spreader and a DV6P fluid head with a Mini Euro wedge plate, a pan bar, and a carry bag. The tripod system provides support for rigs up to 22.1 lb.
The tripod features a standard 75mm bowl and a ground spreader to help steady the tripod. The legs secure with locking levers, can extend from 25.2 to 64.6" in height, and break down to 33.5" in length for transport. The folding tripod legs set up and break down the tripod quickly and easily.
The fluid head features an 8-step counterbalance, 4-step pan and tilt drag, 360° panning, +90/-75° tilting, a bubble level, a wedge camera plate with 1/4"-20 and 3/8"-16 camera screws, and a 75mm half ball base.
-

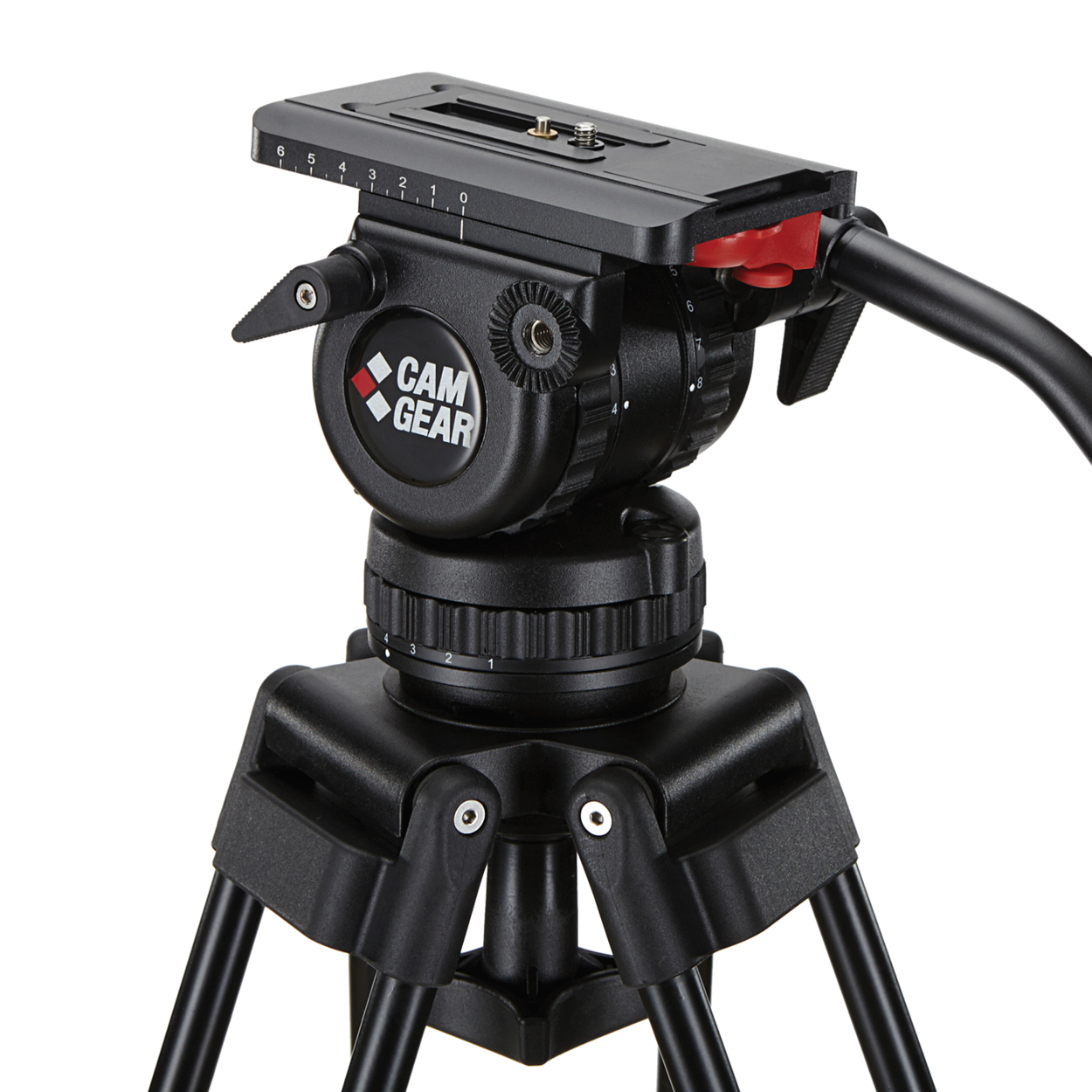

DV6P CFMS (CMG-DV6P-MS-CF-TRISYS)
MSRP: $1600
Key Features
2-Stage Carbon Fiber Tripod
DV6P Fluid Head with Mini Euro Plate
Mid-Level Spreader, 22.1 lb Maximum Load
25.2 to 64.6" Height Range, 75mm Bowl
33.5" Transport Length, Bubble Level
Soft Carry Case
Add a full tripod system with a professional fluid head to support your camera rig with this DV6P Fluid Head & T75/CF2 Carbon Fiber Tripod with Mid-Level Spreader System from Camgear. The system includes a 2-stage carbon fiber tripod with a mid-level spreader, a DV6P fluid head with a Mini Euro wedge plate, a pan bar, and a carry bag. The tripod system provides support for rigs up to 22.1 lb.
The tripod features a standard 75mm bowl and a mid-level spreader to help steady the tripod. The legs secure with locking levers, can extend from 25.2 to 64.6" in height, and break down to 33.5" in length for transport. The folding tripod legs set up and break down the tripod quickly and easily.
The fluid head features an 8-step counterbalance, 4-step pan and tilt drag, 360° panning, +90/-75° tilting, a bubble level, a wedge camera plate with 1/4"-20 and 3/8"-16 camera screws, and a 75mm half ball base.
-

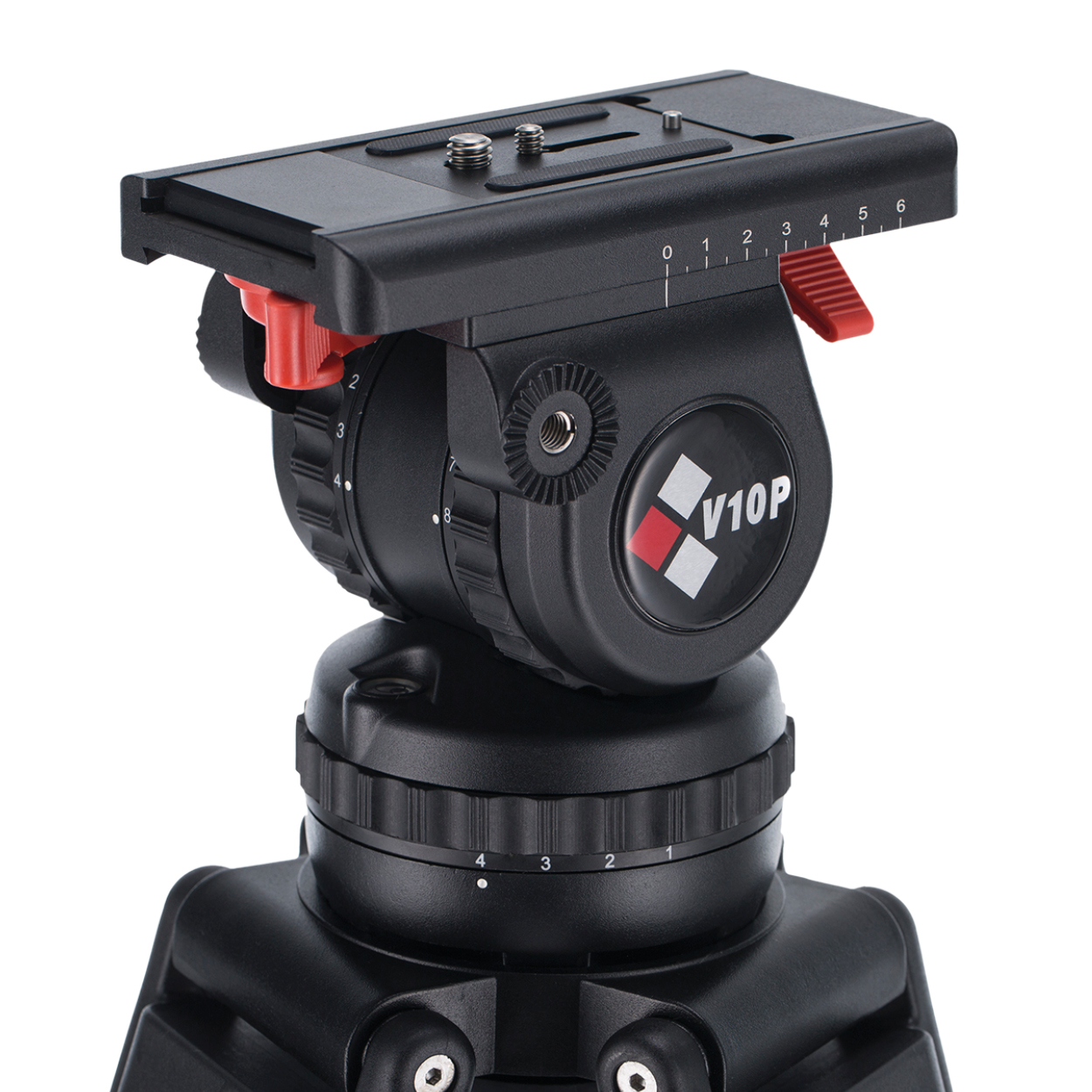

V10P ALMS (CMG-V10-MS-AL-TRISYS)
MSRP: $1900
Key Features
Step counter balance. 8 steps
0-45 lbs payload at 75mm COG.
0-29 lbs. Payload at 100mm COG
100mm bowl
Touch and Go Euro plate with quick release
Mid-level spreader
2 stage aluminum tripod
Tripod bag included
100mm ball-based support for a midsize video rig. Ideal for cine, DSLR, and mirrorless capture, this tripod system supports camera rigs weighing up to 45 lbs. and has a height range of 25.6 to 65" for grabbing both low-angle and eye-level shots.
This system includes the V10 fluid head with a pan bar, the T100 AL2/MS aluminum tripod with a mid-level spreader, and a set of removable rubber feet. A heavy-duty carry bag is included to store the tripod system and accessories.
-

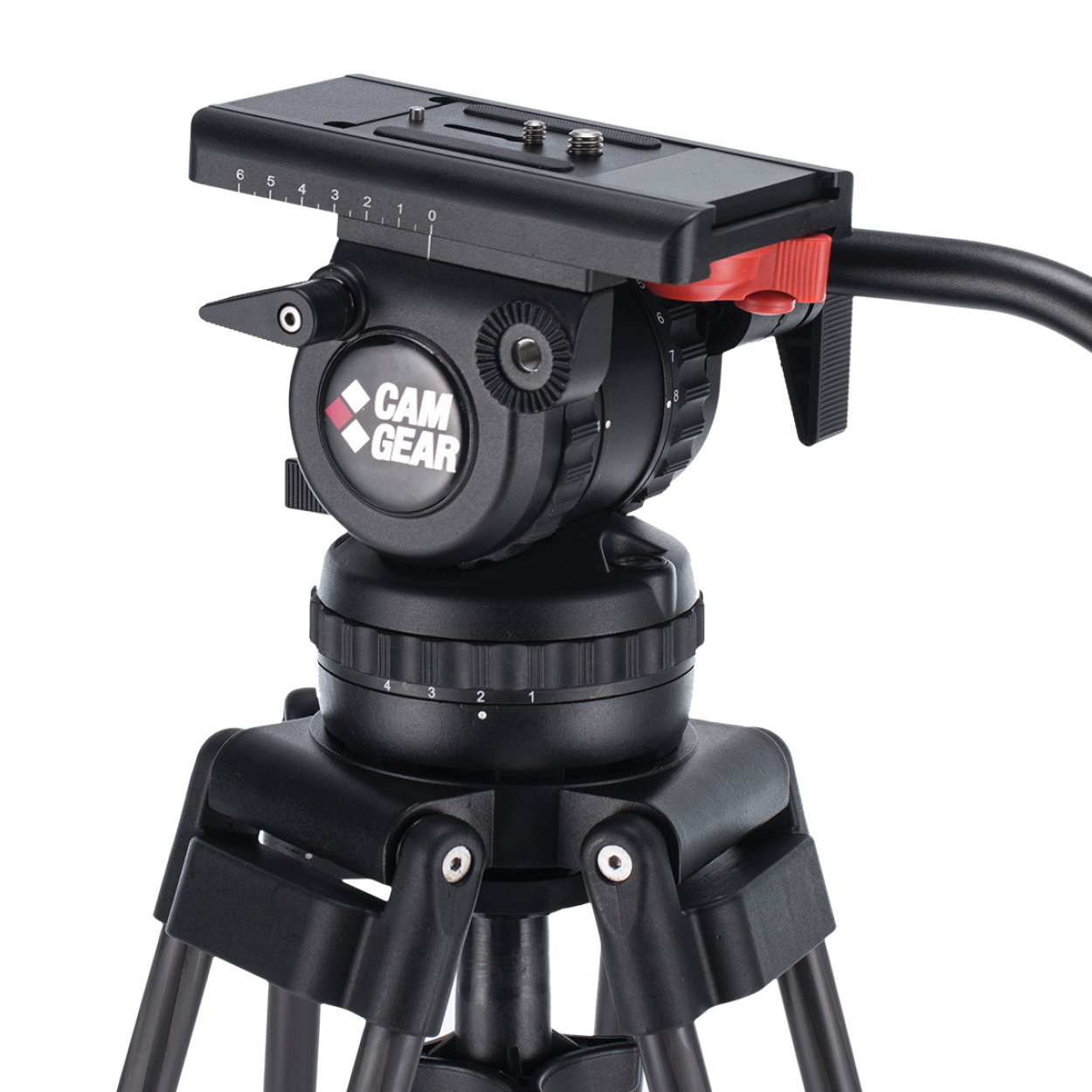

V10P CFMS (CMG-V10-MS-CF-TRISYS)
MSRP: $2200
Key Features
Step counterbalance. 8 steps
0-45 lbs payload at 75mm COG.
0-29 lbs. Payload at 100mm COG
100mm bowl
Touch and Go Euro plate with quick release
Mid-level spreader
Light weight carbon fiber tripod
Tripod bag included
100mm ball-based support for a midsize video rig. Ideal for cine, DSLR, and mirrorless capture, this tripod system supports camera rigs weighing up to 45 lbs. and has a height range of 25.6 to 65" for grabbing both low-angle and eye-level shots.
This system includes the V10 fluid head with a pan bar, the T100 AL2/MS aluminum tripod with a mid-level spreader, and a set of removable rubber feet. A heavy-duty carry bag is included to store the tripod system and accessories.
-

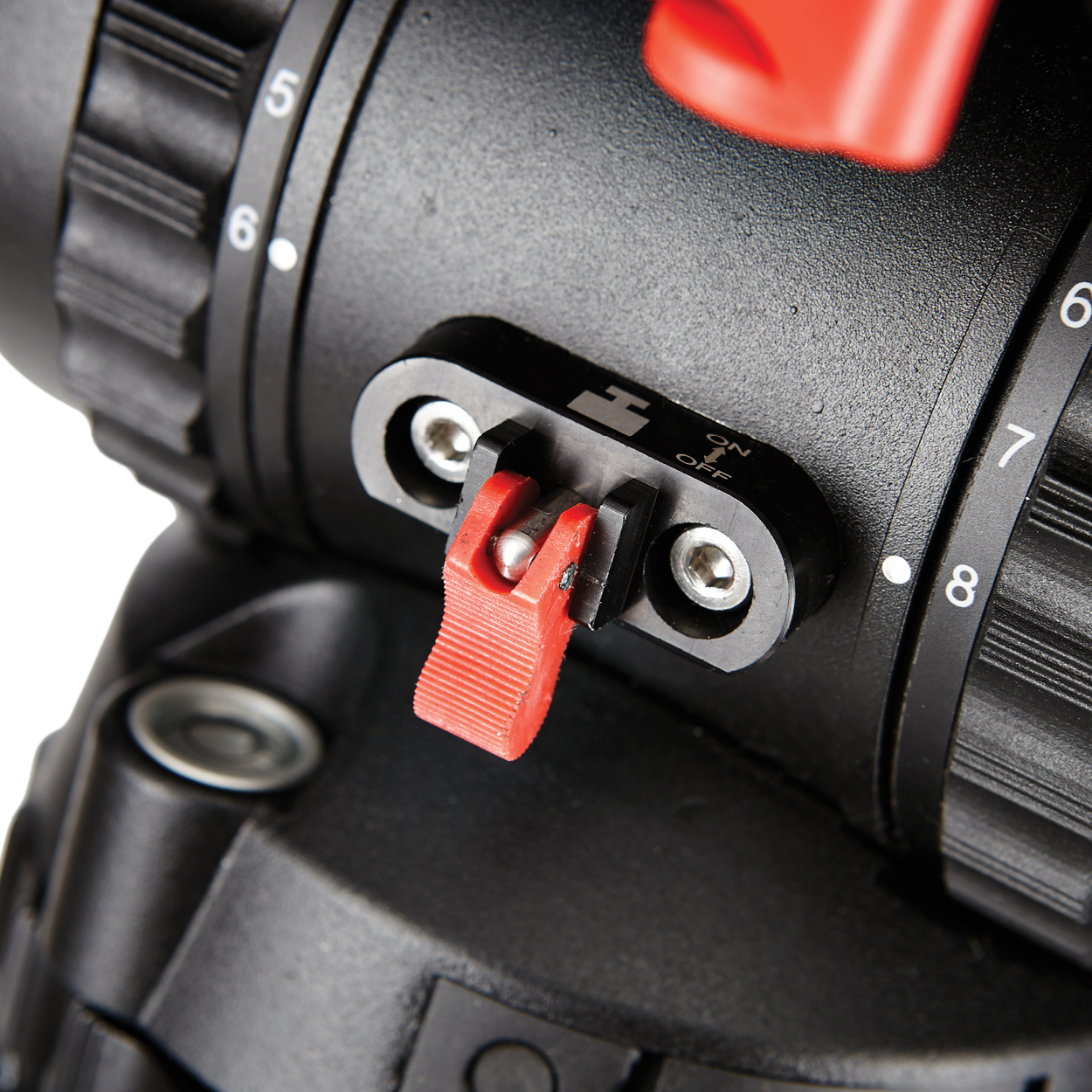

V15P ALMS (CMG-V15P-MS-AL-TRISYS)
MSRP: $2700
Key Features
Step Counterbalance. 18 steps.
Payload 0-58 lbs. At 75mm COG
Payload 0-44 lbs. At 100mm COG
100mm bowl
Touch and Go Euro Plate with quick release
Mid-level spreader
2-stage aluminum tripod
Tripod bad included
100mm ball-based support for a large video rig. Ideal for broadcast and ENG-type capture, this tripod system supports camera rigs weighing up to 45 lb and has a height range of 24 to 66.9" for grabbing both low-angle and eye-level shots.
This system includes the V15P fluid head with a pan bar, the ENG/AL2 GS aluminum tripod with a mid level spreader, and a set of removable rubber feet. A heavy-duty bag is included to store the tripod system and accessories.
-

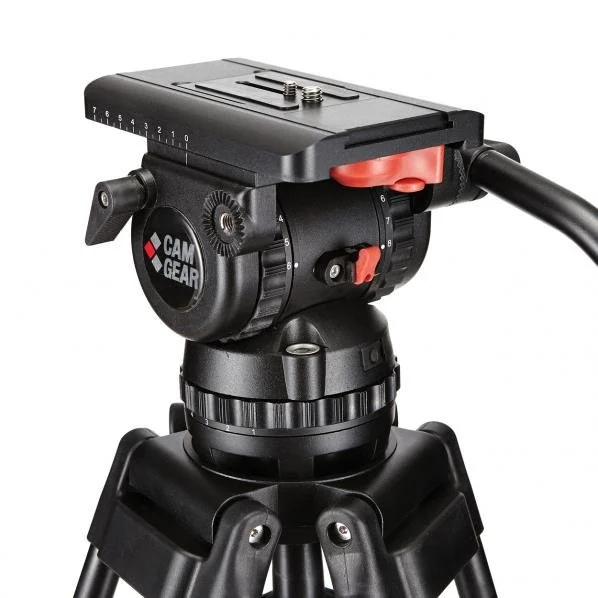

V15P CFMS (CMG-V15P-MS-CF-TRISYS)
MSRP: $3100
Key Features
Step Counterbalance. 18 steps.
Payload 0-58 lbs. At 75mm COG
Payload 0-44 lbs. At 100mm COG
100mm bowl
Touch and Go Euro Plate with quick release
Mid-level spreader
Light weight carbon fiber tripod
Tripod bad included
100mm ball-based support for a large video rig. Ideal for broadcast and ENG-type capture, this tripod system supports camera rigs weighing up to 165.4 lb and has a height range of 21 to 59" for grabbing both low-angle and eye-level shots.
This system includes the V15P fluid head with a pan bar, the ENG/CF2 MS carbon fiber tripod with a mid-level spreader, and a set of removable rubber feet. A heavy-duty bag is included to store the tripod system and accessories.
-

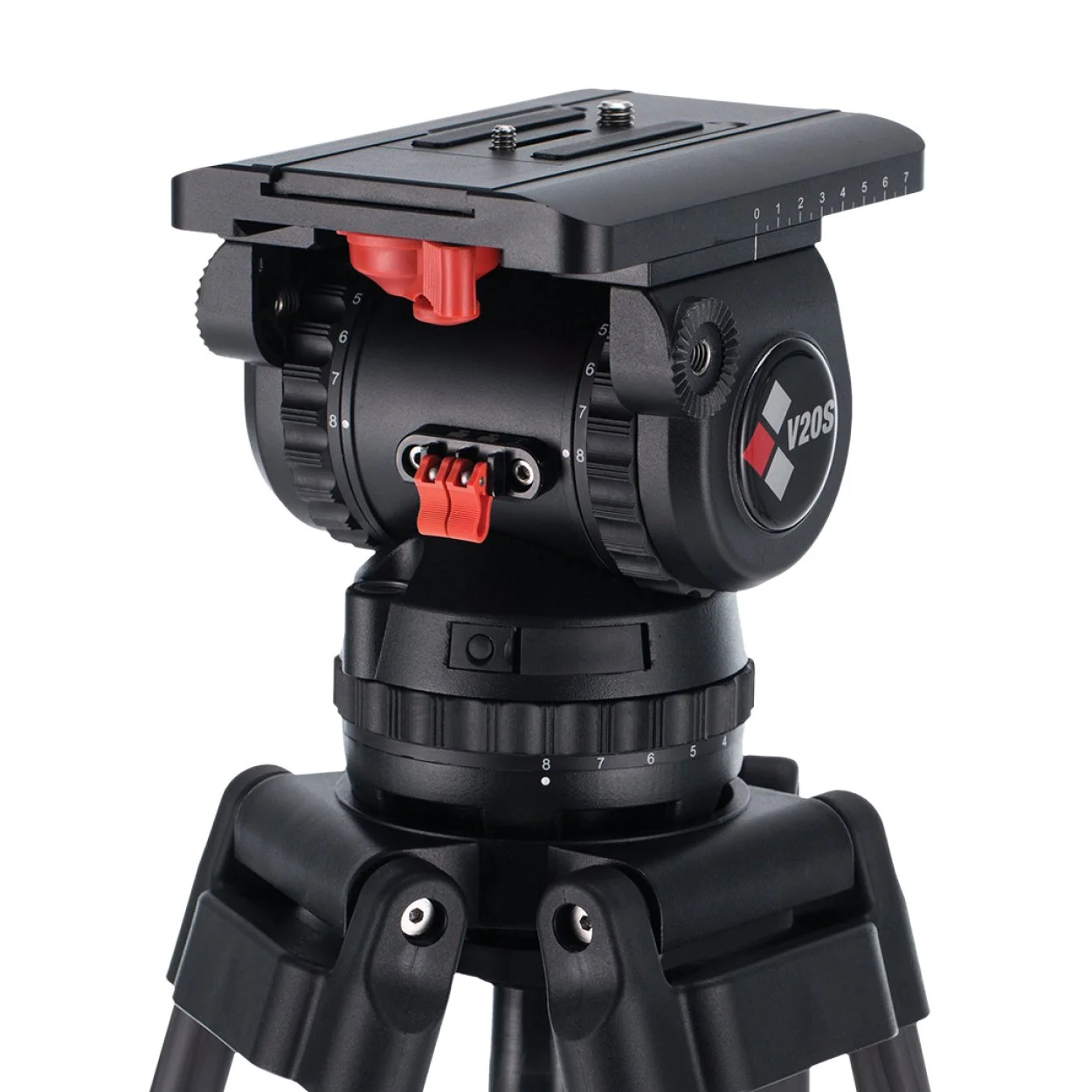

V20P EFP CFMS (CMG-V20P-MS-CF-TRISYS)
MSRP: $5300
Key Features
Step counterbalance. 16 steps.
Payload 0-70 lbs. At 100mm COG
Payload 0-51 lbs. At 125mm COG
8 Steps of pan and tilt drag
100 mm bowl
Extended camera plate with touch and go euro plate with quick release
Mid-level spreader
EFP 2 stage carbon fiber tripod with max capacity of 220 lbs.
2 telescoping pan bars included
Heavy duty wheeled bag included
100mm half ball head, a +90/-75° tilt range, and a 360° panning range. It features a 10-step counterbalance system and 8-step drag control adjustment, which support loads up to 70 lb. Its cine-style Mini Euro wedge camera plate mounts into the head and provides 1/4"-20 and 3/8"-16 camera tie-down screws. EFP100/CF2 carbon fiber tripod with a mid-level spreader, and removable feet. It features quick levers that speed up your setup and breakdown. A heavy-duty wheeled bag is included to store the tripod system and accessories.
-

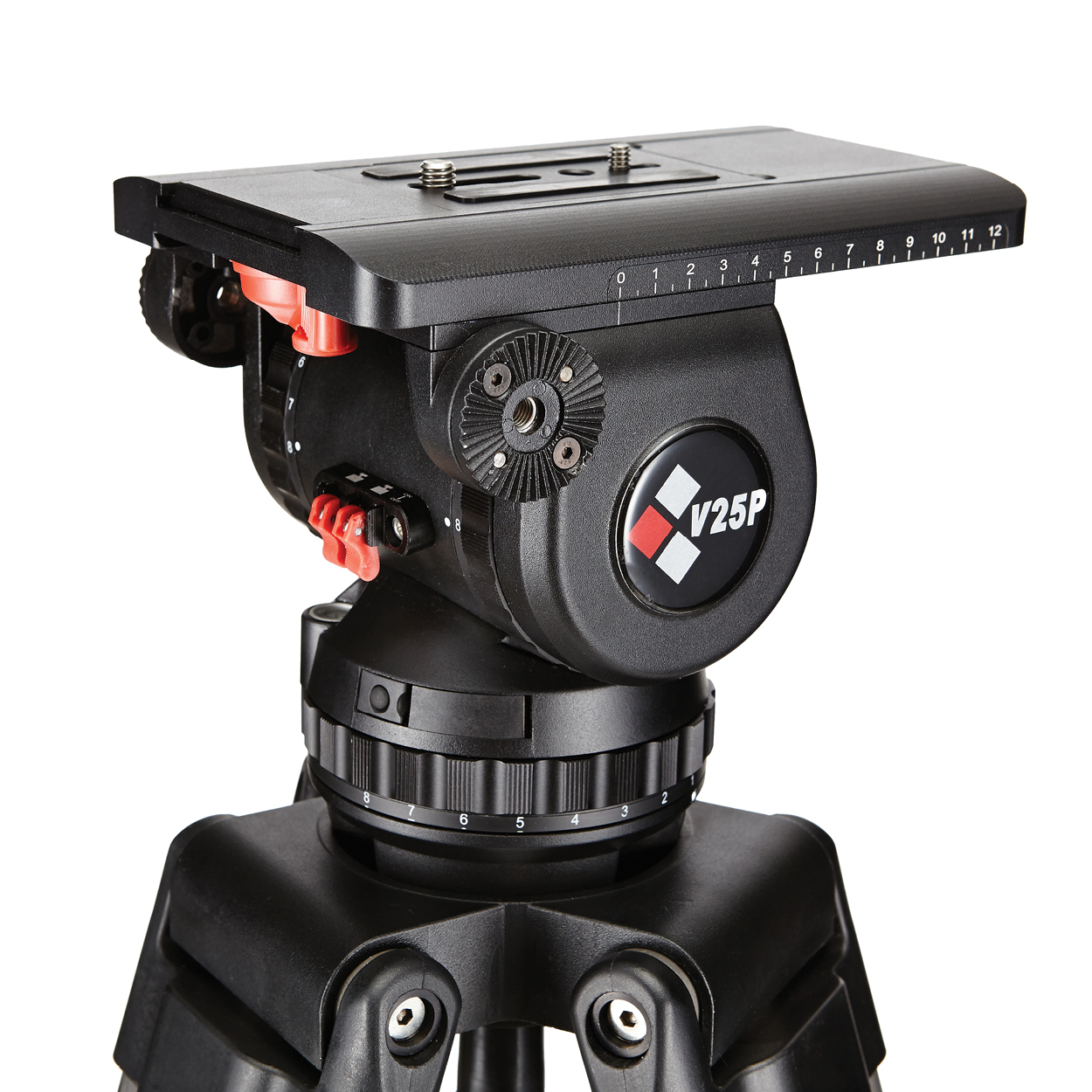

V25 EFP CFMS (CMG-V25-MS-CF-TRISYS)
MSRP: $5800
Key Features
Step counterbalance. 24 steps.
Payload 0-88 lbs. At 100mm COG
Payload 0-71 lbs. At 125mm COG
10 steps of pan and tilt drag
100mm bowl
Extended camera plate with touch and go euro plate with quick release
Mid-level spreader
EFP 2 stage carbon fiber tripod with max capacity of 220 lbs.
2 telescoping pan bars included
Heavy duty wheeled bag included
The V25P fluid head provides smooth balance along its 100mm half ball head, +90/-75° tilt range, and 360° panning range. It features a 10-step counterbalance system and 8-step drag control adjustment, which support loads up to 88 lbs. Its cine-style Mini Euro wedge camera plate mounts into the head and provides 1/4"-20 and 3/8"-16 camera tie-down screws. The carbon fiber tripod features a standard 100mm bowl and a mid-level spreader to help steady the tripod. A set of removable rubber feet is included.
The legs are secure with locking levers and can extend from 22.8 to 61" in height, and it breaks down to 30.7" in length for transport. The folding legs allow the tripod to be set up and broken down quickly and easily.
-

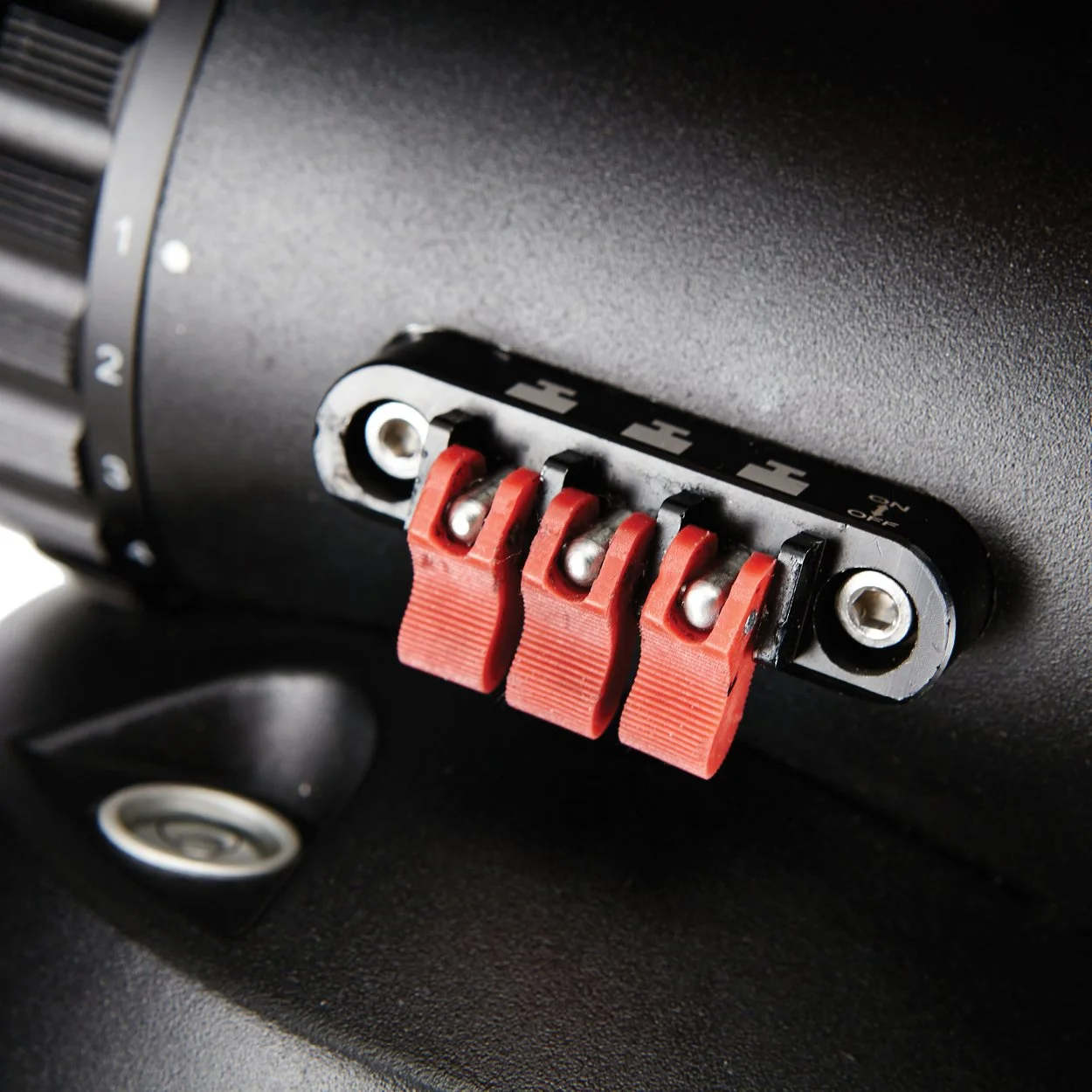

V35P EFP CFMS (CMG-V35P-MS-CF-TRISYS)
MSRP: $7200
Key Features
Step counterbalance. 32 steps.
Payload 0-120 lbs. At 100mm COG
Payload 0-99 lbs. At 150mm COG
10 steps of pan and tilt drag
150mm bowl
Extended camera plate with touch and go euro plate with quick release
Mid-level spreader
EFP 2 stage carbon fiber tripod with max capacity of 220 lbs.
2 telescoping pan bars included
Heavy duty wheeled bag included
The V35P fluid head provides smooth balance along its 150mm half ball head, a +90/-75° tilt range, and a 360° panning range. It features an 11-step counterbalance system and 8-step drag control adjustment, which support loads up to 99.21 lb. Its cine-style Mini Euro wedge camera plate mounts into the head and provides 1/4"-20 and 3/8"-16 camera tie-down screws. The EFP150 CF2/MS Carbon Fiber Tripod with Mid-Level Spreader from Camgear is a two-stage tripod that provides support for rigs up to 220 lb. The carbon fiber tripod features a standard 150mm bowl and a mid-level spreader to help steady the tripod. A set of removable rubber feet are included. The legs are secured with locking levers and can extend from 22.8 to 61" in height, and it breaks down to 30.7" in length for transport. The folding legs allow the tripod to be set up and broken down quickly and easily.
-

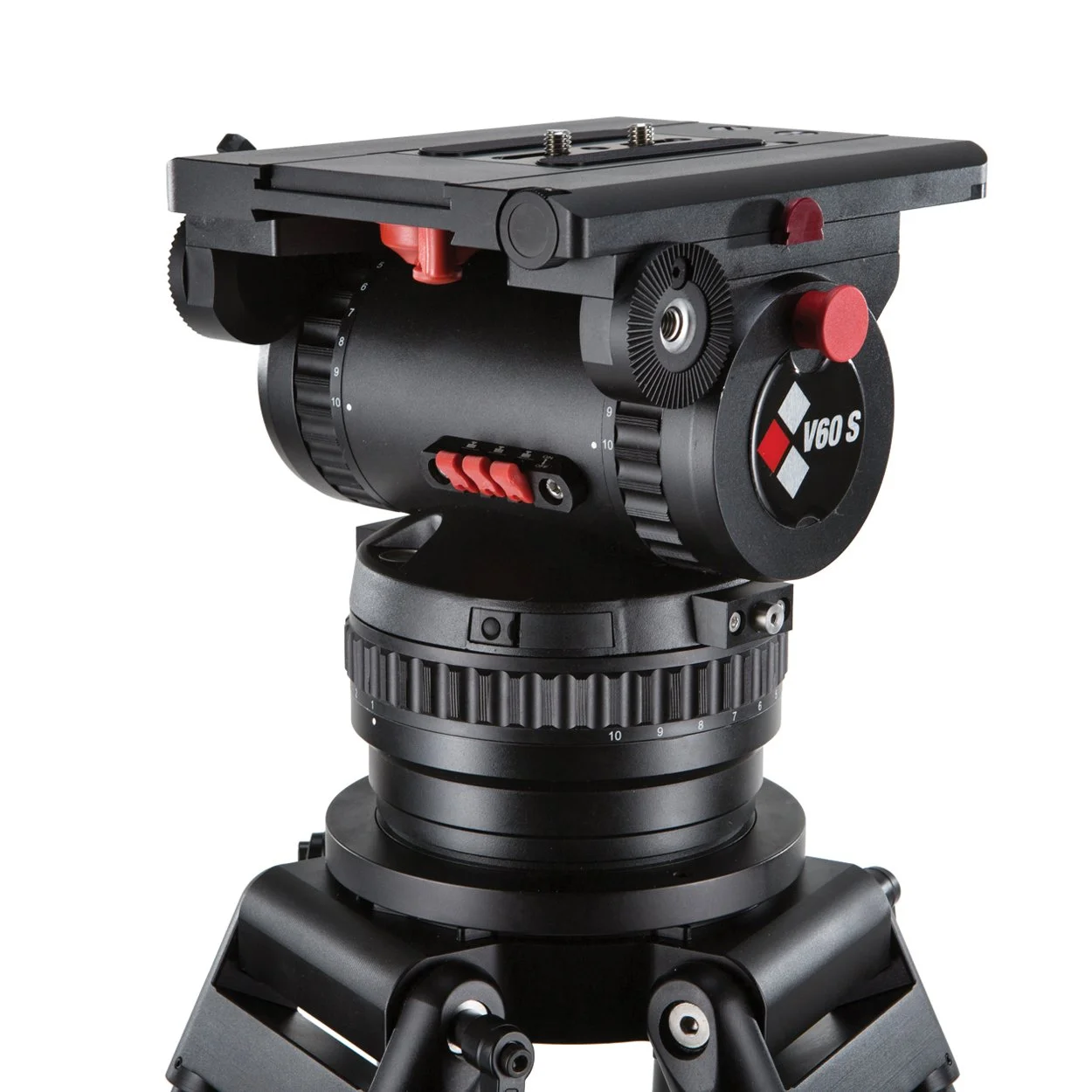

V60 Studio/OB AL MS
MSRP: $15,700
Key Features
Heavy-Duty 4-Bolt Flat Base Fluid Head
132.3 lb Load Capacity
360° Panning, +90/-75° Tilting
V- Plate with Dual 3/8"-16 Camera Screws
15-Step Counterbalance, 10-Step Drag
Illuminated Bubble Level
Includes Dual Telescoping Pan Bars
Add a sturdy fluid head to your cinema kit with the V60 Studio/OB Fluid Head from Camgear. The V60 fluid head provides steady, heavy-duty support using its 4-bolt flat base, which supports loads up to 132.3 lb. It features a +90/-75° tilt range, a 360° panning range, a 15-step counterbalance system (10-1 +5 levers), and a 10-step drag control adjustment (1-10). The flat base style is compatible with Camgear EFP and Studio OB tripods.
-

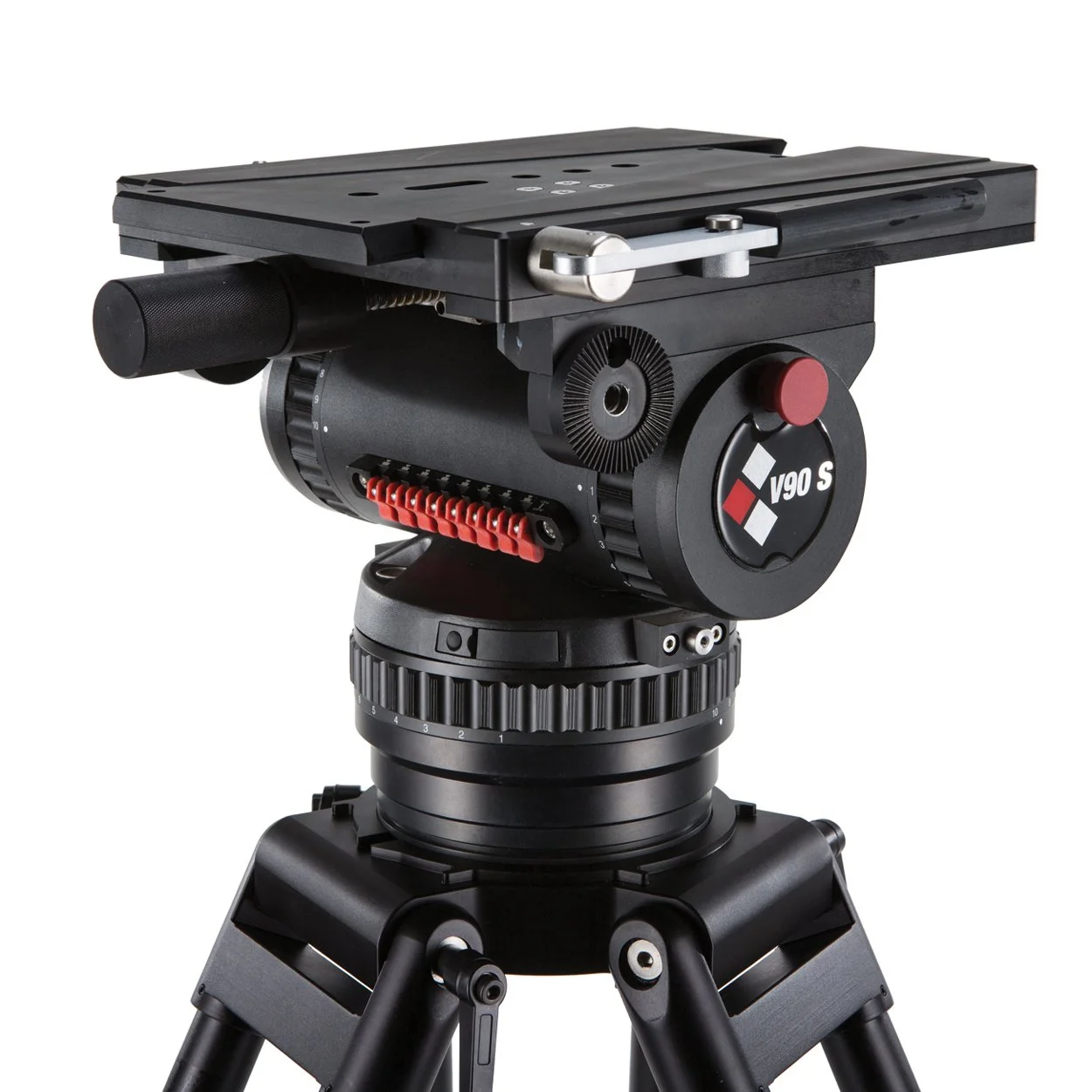

V90 Studio OB
MSRP: $16,800
Key Features
Heavy-Duty 4-Bolt Flat Base Fluid Head
1-Stage Aluminum Tripod Legs
Mid-Level Spreader
198.4 lb Load Capacity
360° Panning, +90/-75° Tilting
40.6 to 63.4" Height Range
V- Plate with Dual 3/8"-16 Camera Screws
18-Step Counterbalance, 10-Step Drag
Illuminated Bubble Level
Includes Dual Telescoping Pan Bars
Add a sturdy tripod system to your cinema kit with the V90 Studio/OB AL MS Heavy-Duty Aluminum Tripod System from Camgear. The kit includes the V90 fluid head, the OB heavy-duty aluminum tripod, a V-plate, and two telescoping pan bars. The system features a height range of 40.6 to 63.4", a weight of 73.7 lb, and a 198.4 lb load capacity.
Camgear Inc. is a high-tech company based in Beijing, which manufactures an extensive line of high quality camera support products, fluid heads and tripods systems for the Broadcast and Film industry.
